Description
Rack-mount LiFePO4 storage for home solar

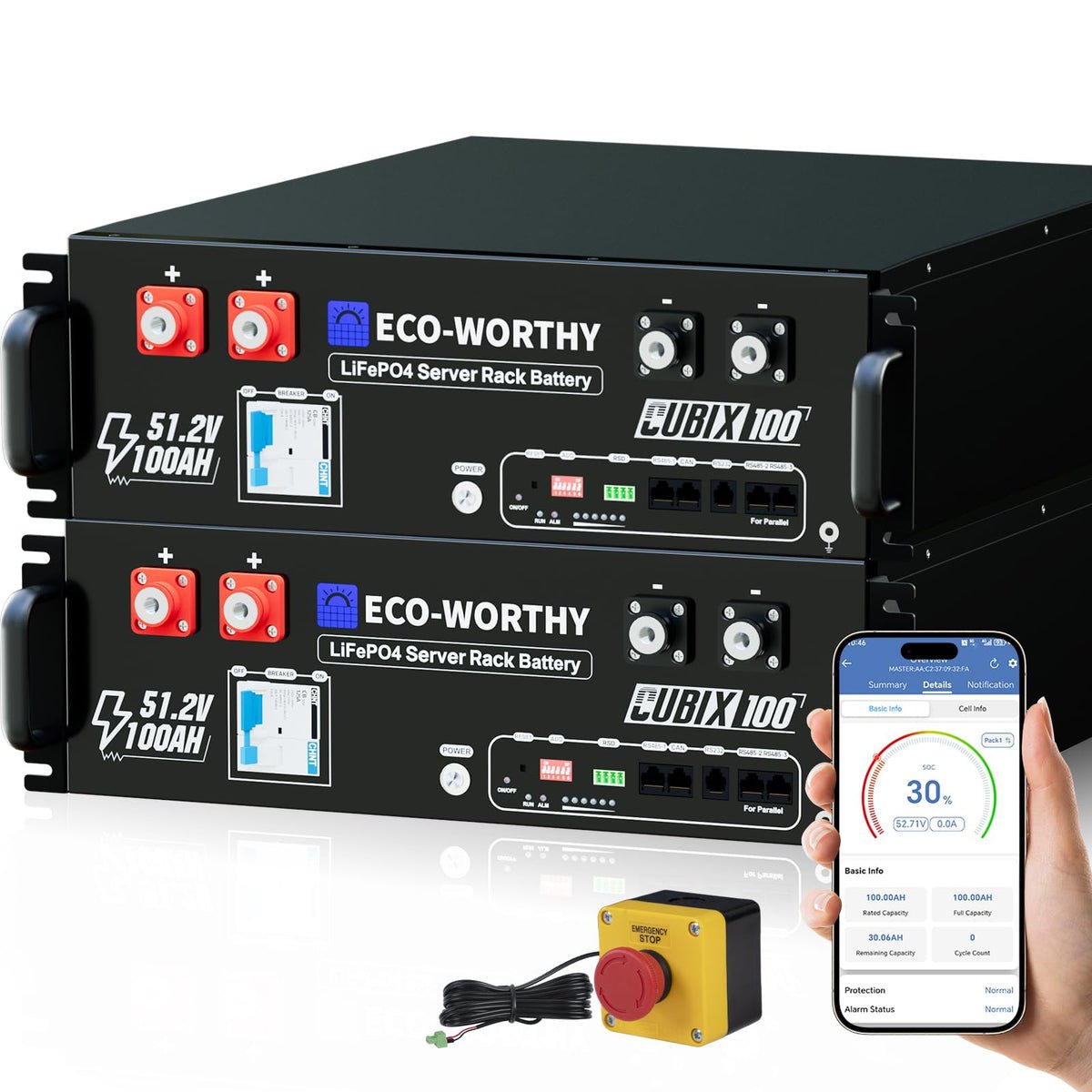

The ECO-WORTHY Cubix100 is a 48V (51.2V) LiFePO4 server rack battery system, configured here as two 100Ah units for 200Ah total. It is listed to UL9540 and UL1973 and CEC listed. CAN/RS485 communication, Bluetooth and WiFi make it a smart fit for solar inverter systems.
- 48V, 2x 100Ah (200Ah)
- Grade A LiFePO4 cells
- UL9540 / UL1973 / CEC listed
- Expandable to 32 units

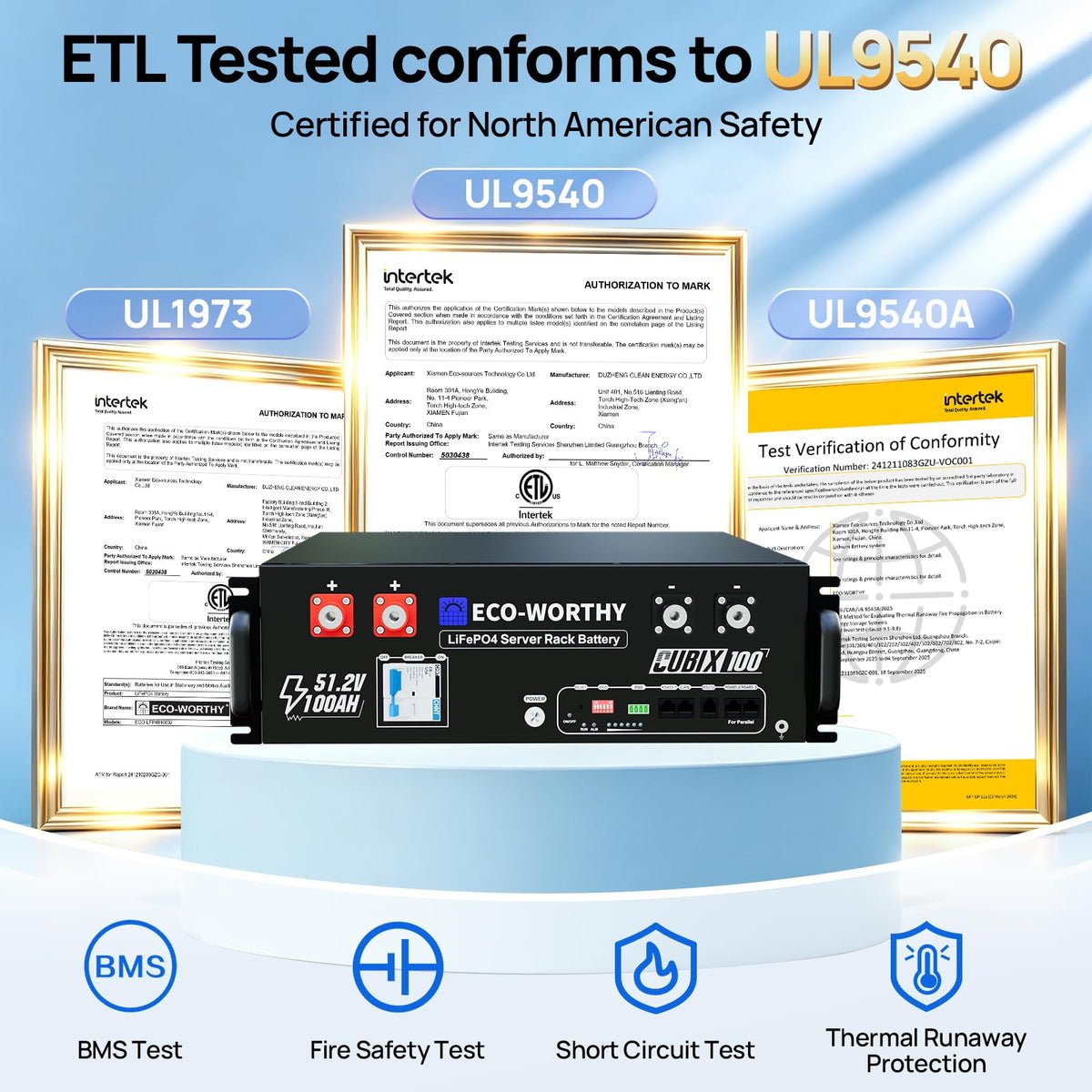

Certified for North America
Tested by Intertek, the battery holds UL9540 and UL1973 certifications and is CEC listed. Its design addresses electrical safety and thermal runaway management.
Home energy storage
Grade A LiFePO4 cells provide reliable power and long cycle life. Use it for emergency backup, daily home backup or, with solar panels, continuous power for off-grid cabins.
Closed-loop communication

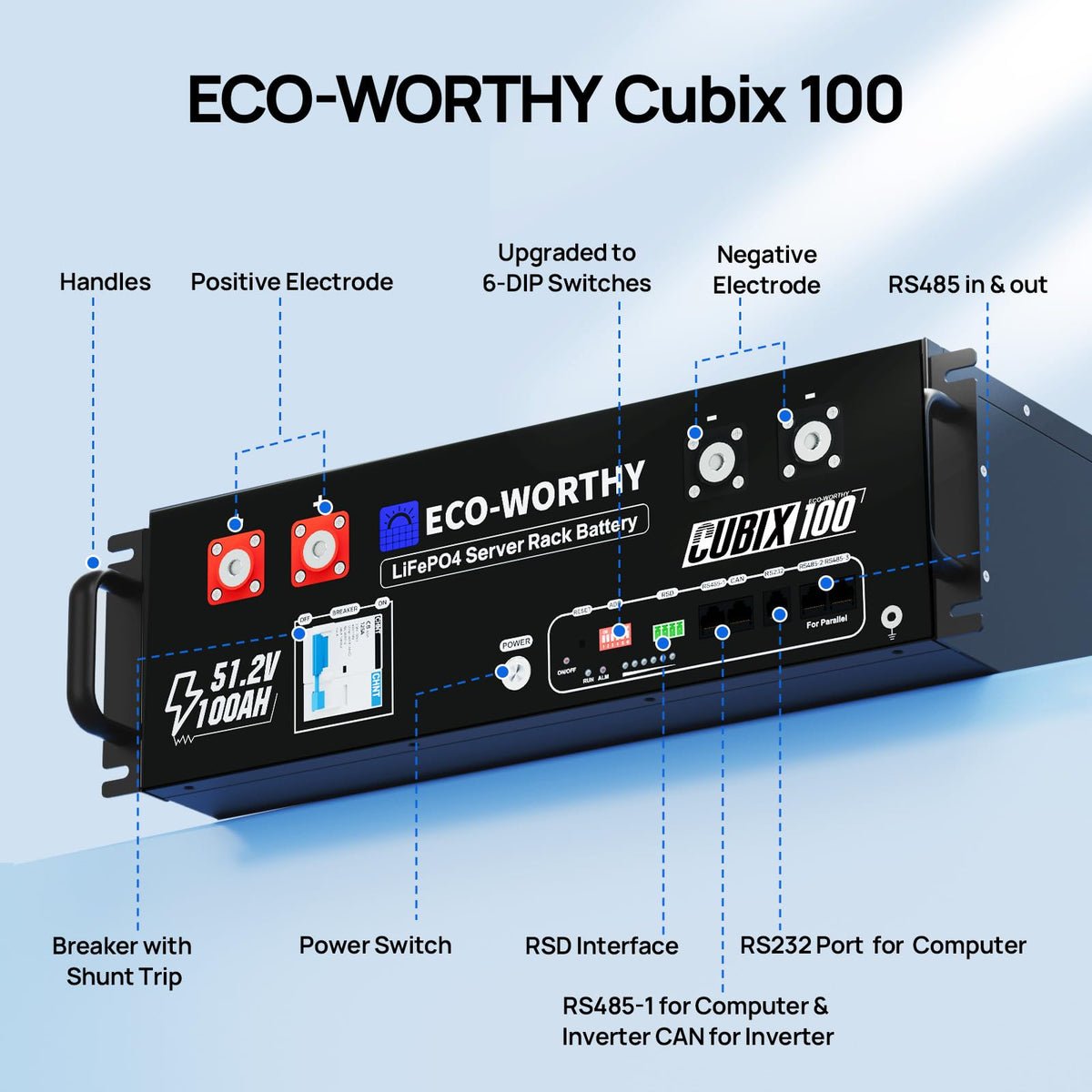

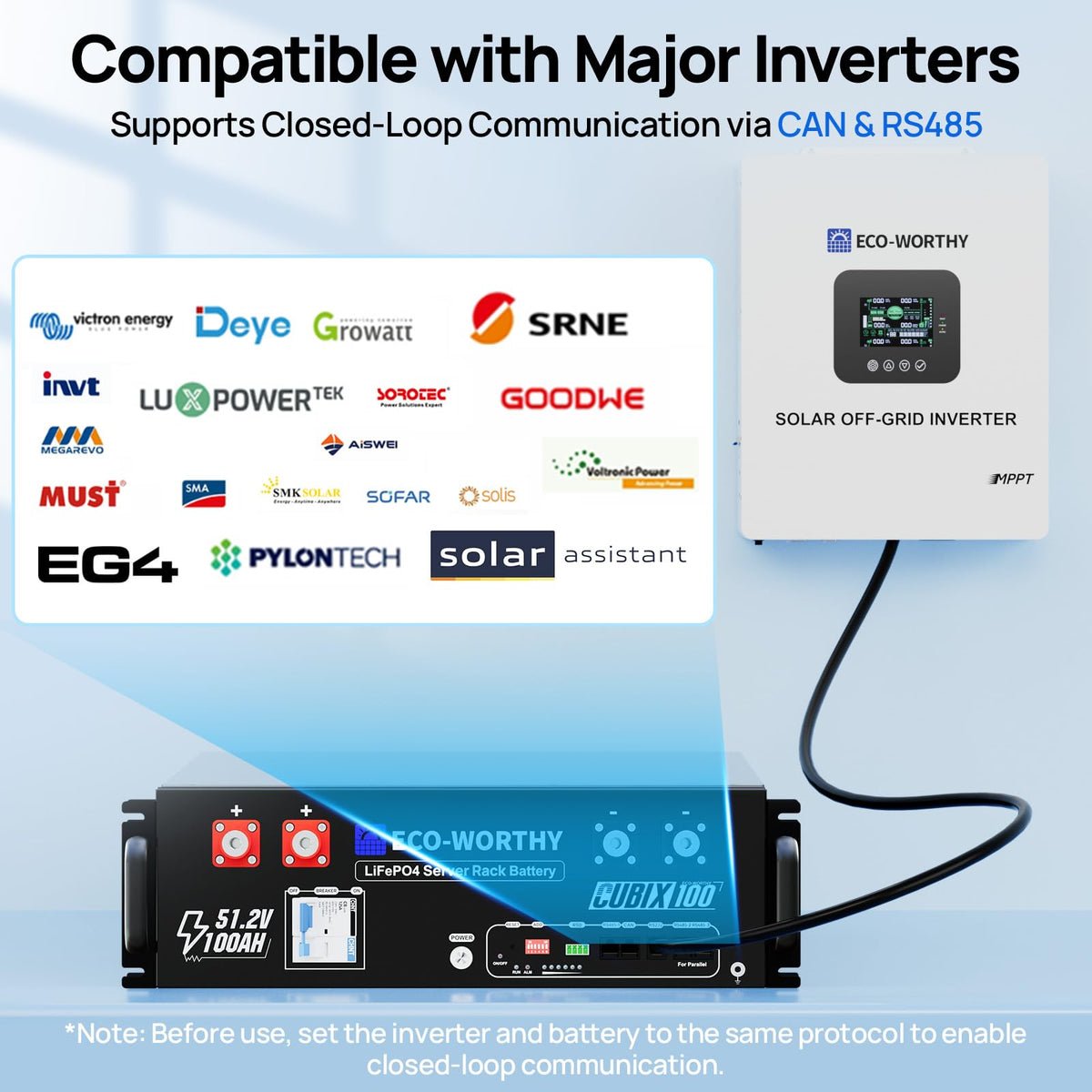

Integrated CAN/RS485 interfaces and multiple protocols allow communication with leading solar inverters. Built-in Bluetooth and WiFi let you monitor status through the ECO-WORTHY app.
Space-saving rack design
Each unit fits standard server racks and supports vertical mounting. Parallel up to 32 units for up to 163.8kWh.
Specifications
| Brand | ECO-WORTHY |
|---|---|
| Model | ECO-LFP4810002 (Cubix100) |
| Configuration | 2x 48V 100Ah (200Ah total) |
| Nominal voltage | 48V (51.2V) |
| Cell type | Grade A LiFePO4 |
| Certifications | UL9540, UL1973, CEC listed |
| Communication | CAN, RS485 |
| Monitoring | Bluetooth, WiFi, ECO-WORTHY app |
| Mounting | Server rack, vertical |
| Max parallel | 32 units (up to 163.8kWh) |
| EAN | 0810127136984 |
| Package dimensions | 25.6 x 21.3 x 9.4 in |
