Description

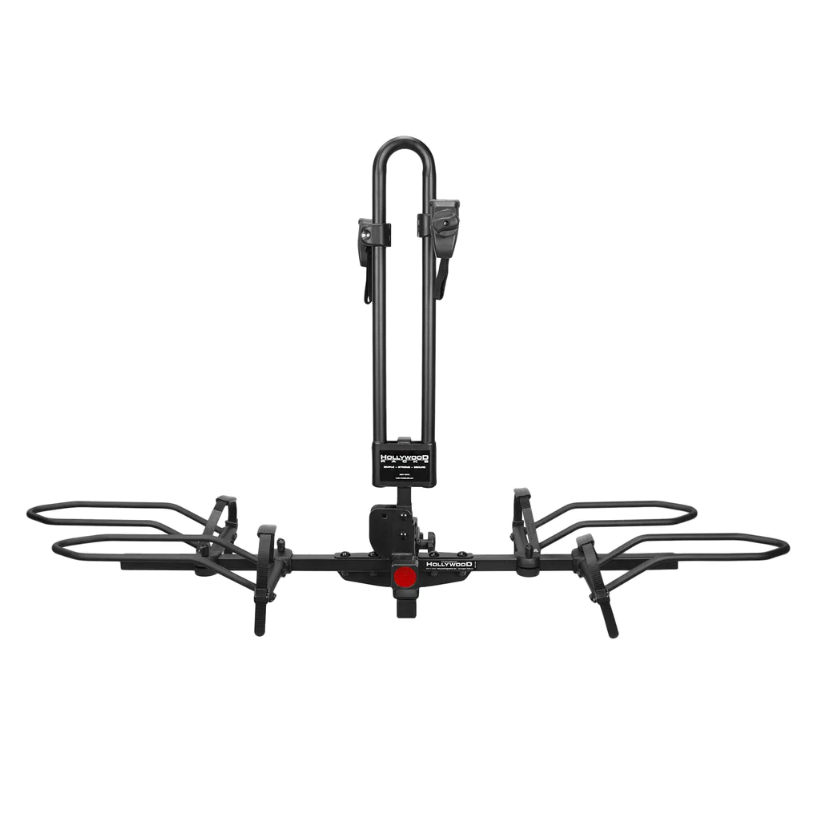

Carry two e-bikes on your RV
The Hollywood Racks HR1700 RV Rider carries two e-bikes, up to 80 lbs each, on the back of a Class A, B or C motorhome, a fifth wheel or a flat-towed vehicle. Heavy-duty wheel holders fit tires up to 5 inches wide, and a double-walled receiver tube handles the extra weight.
- 2 e-bikes, 80 lbs each
- Tires up to 5 in wide
- RV and fifth wheel rated
- 2 in hitch, Class 3 minimum
Built for RV travel
Rated for Class A, B and C motorhomes, fifth wheels and flat-towed vehicles. A minimum Class 3 trailer hitch is required.

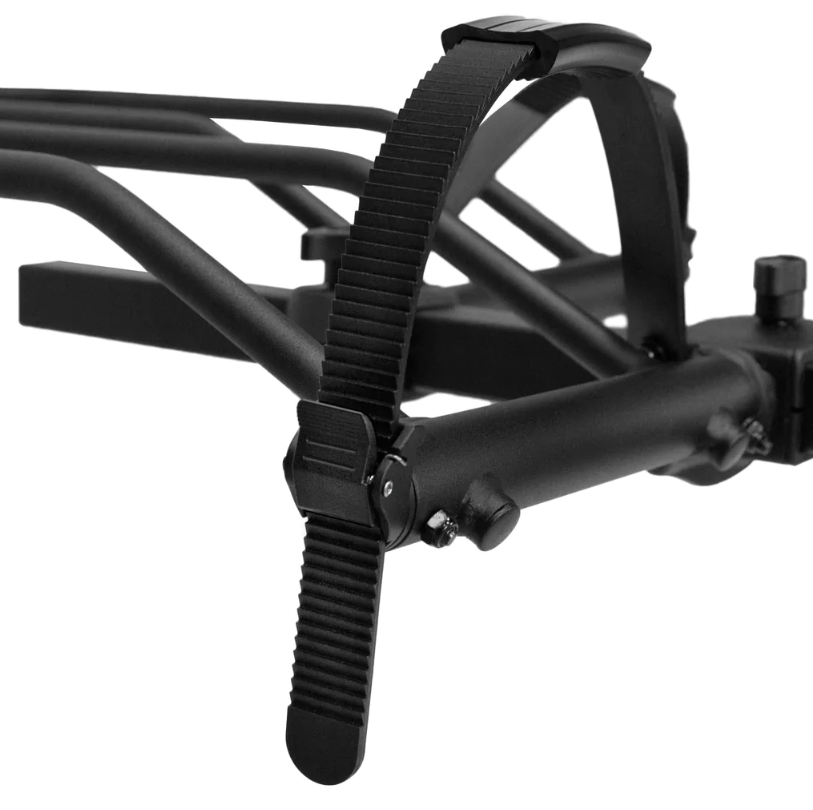

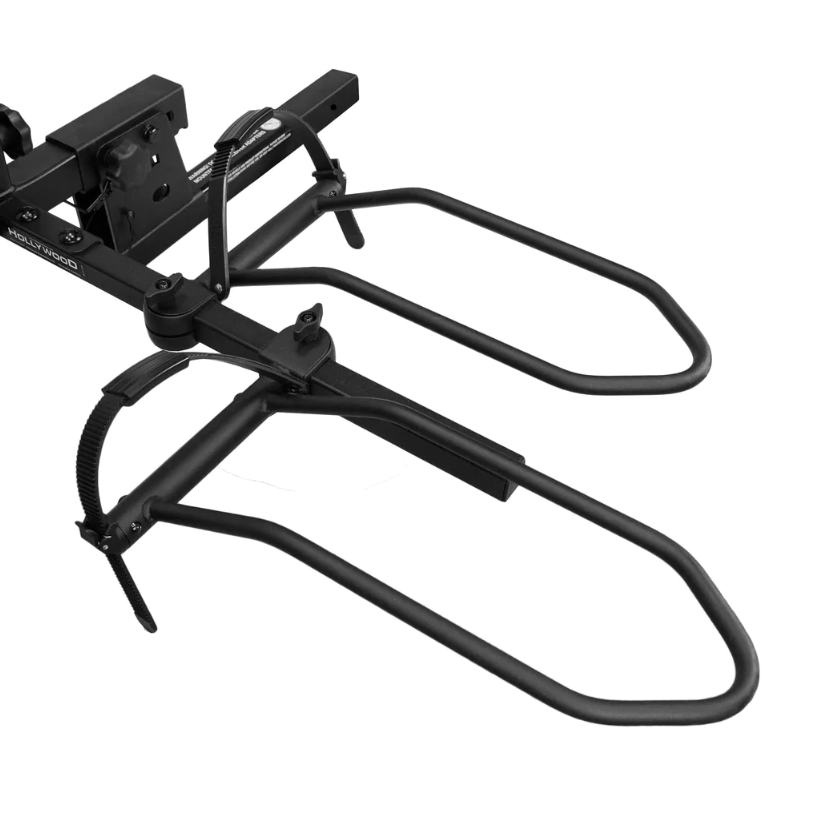

Heavy-duty wheel holders
Universal wheel holders with ratchet straps and rim protectors fit any tire up to 5 inches wide, with an internally reinforced frame and external brace.
Secure and steady
Locking frame grabbers fit tubes 1 to 2 inches in diameter, a keyed-alike hitch pin and 8 ft cable lock everything down, and the No-Wobble hitch system removes slack without tools.

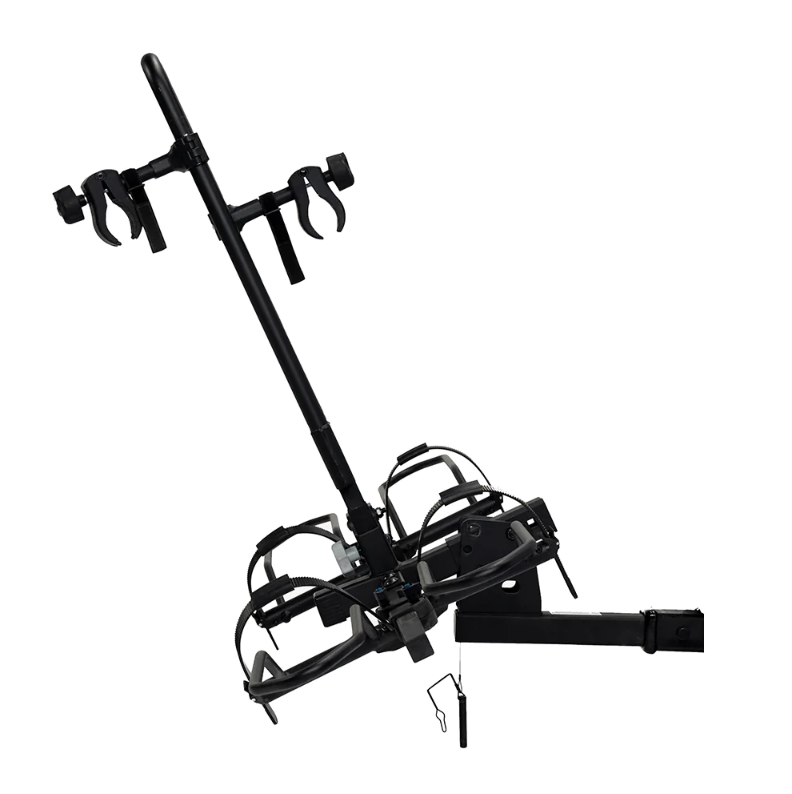

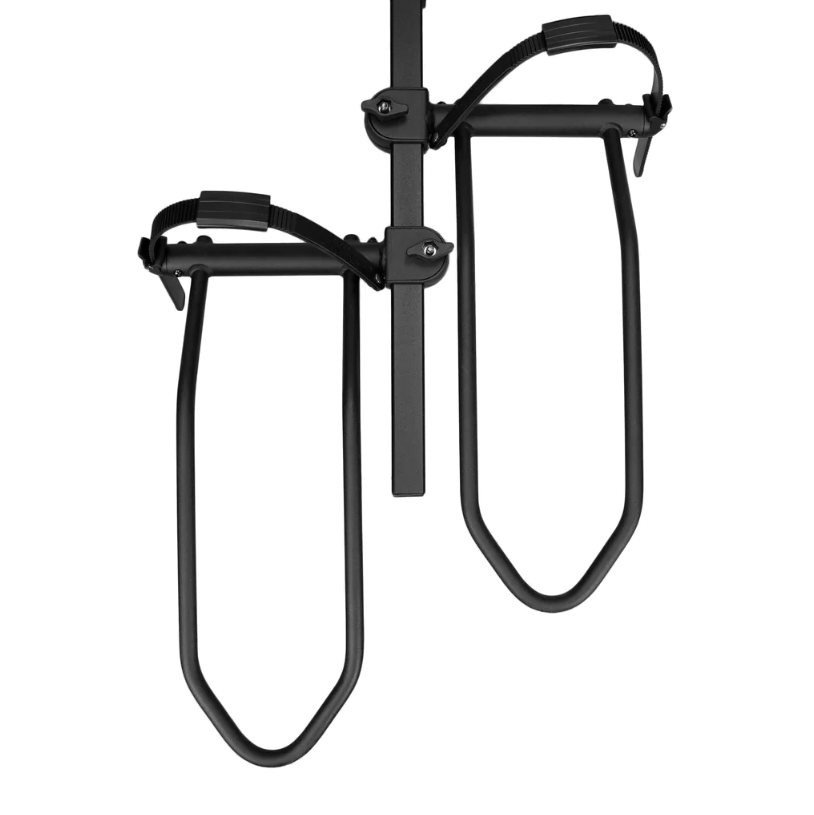

Folds and tilts
The rack folds up when not in use and tilts down for rear cargo access.
Specifications
| Brand | Hollywood Racks |
|---|---|
| Model | HR1700 RV Rider |
| Capacity | 2 bikes, max 80 lbs each |
| Hitch size | 2 in only (no 1¼–2 in adapter) |
| Wheelbase | 36–60 in |
| Max tire width | 5 in |
| Space between bikes | 10 in |
| Rack weight | 63.5 lbs |
| Hitch requirement | Minimum Class 3; flanged receiver for hitch tightener |
| Towing requirements | Min tongue weight 350 lbs, min vehicle length 24 ft, min GVW 5,000 lbs, double axle |
| Not for | Gas bikes, mopeds, motorcycles, trikes, electric scooters |
What’s in the box
- RV Rider rack
- Keyed-alike locking hitch pin
- 8 ft security cable
- Locking frame hooks
- 2 small wheel adapters for 20 in fat tire bikes
- Safety strap
